Standalone / freestanding
Independent pergola configuration with its own post-and-beam support frame. Final post count follows the selected size and project review.
CADARN APERTA · Standalone + Wall-Mounted + Roof-Only Retractable Aluminium Roof
Open the roof completely.
A motorised aluminium roof whose blades physically retract to create a genuinely open-sky outdoor space.
APERTA extends the CADARN family beyond rotating louvres. Choose a standalone / freestanding, wall-mounted or roof-only configuration. Start with one of the simple standard sizes, then move to made-to-measure dimensions where the project requires them.
Standard sizes firstMade-to-measure availableStandalone / freestandingWall-mountedRoof-only / existing structureMotorised retractable aluminium roofRemote controlWarm-white perimeter LEDSupply only
Confirmed installation formats
Three ways to configure the same retractable roof platform.
Wall-mounted
The retractable roof connects to the building, with the front support and fixing arrangement confirmed for the project.
Roof-only
The moving roof can be reviewed for installation onto a suitable existing supporting structure. The existing frame must be checked for geometry, fixings and project loads.
Standard + custom sizing
Use the documented standard sizes as the first quoting pathway; made-to-measure dimensions are available where the opening does not suit a standard reference.
Integration examples
Wall-mounted and roof-only connections need the most project coordination.
APERTA is also available standalone / freestanding. The visual examples below focus on the two connection-sensitive configurations, where building interfaces or an existing supporting frame must be reviewed carefully.
Retract the roof · not just the blade angle
A different roof behaviour inside the CADARN family.
Physically retracts
The aluminium blades travel back along the roof structure rather than simply remaining across the opening and rotating.
Open-sky condition
Retracting the roof exposes a substantially larger section of sky for direct light and a more genuinely outdoor feel.
Motorised as standard
The documented system includes the roof motor, receiver and remote control rather than a separate manual operating pathway.
Lighting integrated
Warm-white LED lighting around the perimeter beam is included in the current documented system configuration.
Standard sizes first · made-to-measure available
Seven easy standard sizes, with custom sizing when the project needs it.
These nominal sizes are the preferred customer-facing starting point for planning and quotation. Final system dimensions are confirmed before order. If a standard size does not suit the project, made-to-measure dimensions can be reviewed for standalone, wall-mounted or roof-only configurations.
Standard size
3 × 3 m
Compact starting size for smaller terraces and outdoor rooms.
Standard size
4 × 3 m
Popular rectangular format for residential outdoor living.
Standard size
4 × 4 m
Square-format pathway for larger dining and entertaining areas.
Standard size
5 × 3 m
Longer rectangular format with a 3 m nominal depth.
Standard size
5 × 4 m
Larger standard format for substantial residential or hospitality use.
Standard size
6 × 3 m
Long-format roof for extended terraces and outdoor zones.
Standard size
6 × 4 m
Largest promoted standard size in the current APERTA range.
Project option
Made to measure
For openings that do not suit a standard size. Final dimensions remain subject to the retractable module, support arrangement and technical review.
Size note: the sizes above are Apollo nominal standard sizes for easier specification and quoting. The system uses modular design increments, so the exact supplied width / projection is confirmed in the final order schedule.
Current verified reference specification
Confirmed system specifications and customer warranty.
Supplier-confirmed technical characteristics, installation configurations and optional equipment, together with Apollo's separately backed customer warranty terms. Final structural suitability is confirmed for each project.
01System typeMotorised retractable aluminium-blade roof
02Installation formatsStandalone / freestanding · wall-mounted · roof-only
03Sizing pathwaySeven promoted standard sizes + made-to-measure project option
04Freestanding post reference150 × 150 × 2.0 mm aluminium
05Retractable bladeDouble-layer aluminium louvre blade · 6063-T5 alloy
06Frame + drainageOutdoor powder-coated aluminium; integrated gutter drains through posts
07Standard widths3,000 mm and 4,000 mm; custom widths subject to technical confirmation
08Length modulesApproximately 156 mm progression; final dimensions confirmed before order
09Freestanding support4 posts through 4,580 mm length; 6 posts from 4,736 mm length
10Wall-mounted / roof-onlyWall-mounted uses front support posts; roof-only has no supplied posts
11MotorA-OK motor · remote control; app / Tuya available as an option
12Accessory optionsZip screens · wind / rain sensors · RGB lighting · custom colours
13Structural manufacturing warranty10 years — Apollo customer warranty, subject to written terms
14Powder-coating warranty10 years — Apollo customer warranty, subject to written terms and exposure conditions
15Motor / electrical warranty2 years
16Retracted blade stackApproximately 30% of the roof depth
17Standard colour formatsBlack · White · mixed Black / White combinations
18Standard height2.700 m
19Roof controlMotor + receiver + remote · 220 V
20LightingWarm-white perimeter LED included
The alloy and warranty durations above are confirmed for the Apollo customer offer. The current documentation confirms a 2-year product warranty, so Apollo's 10-year structural manufacturing and coating coverage is an additional Apollo commitment, subject to written policy, exclusions and claims process. The exact beam / gutter profile dimensions follow the technical drawings. Wind / load reports, coating test standards, drainage capacity and any IP rating remain subject to documentation review.
Three roof conditions
Closed. Partially retracted. Open sky.
Closed
Extend the aluminium roof across the structure for overhead shade and rain management through the integrated roof and gutter pathway.
Partially retracted
Stop the roof between closed and fully retracted positions to tune the amount of opening to the way the space is being used.

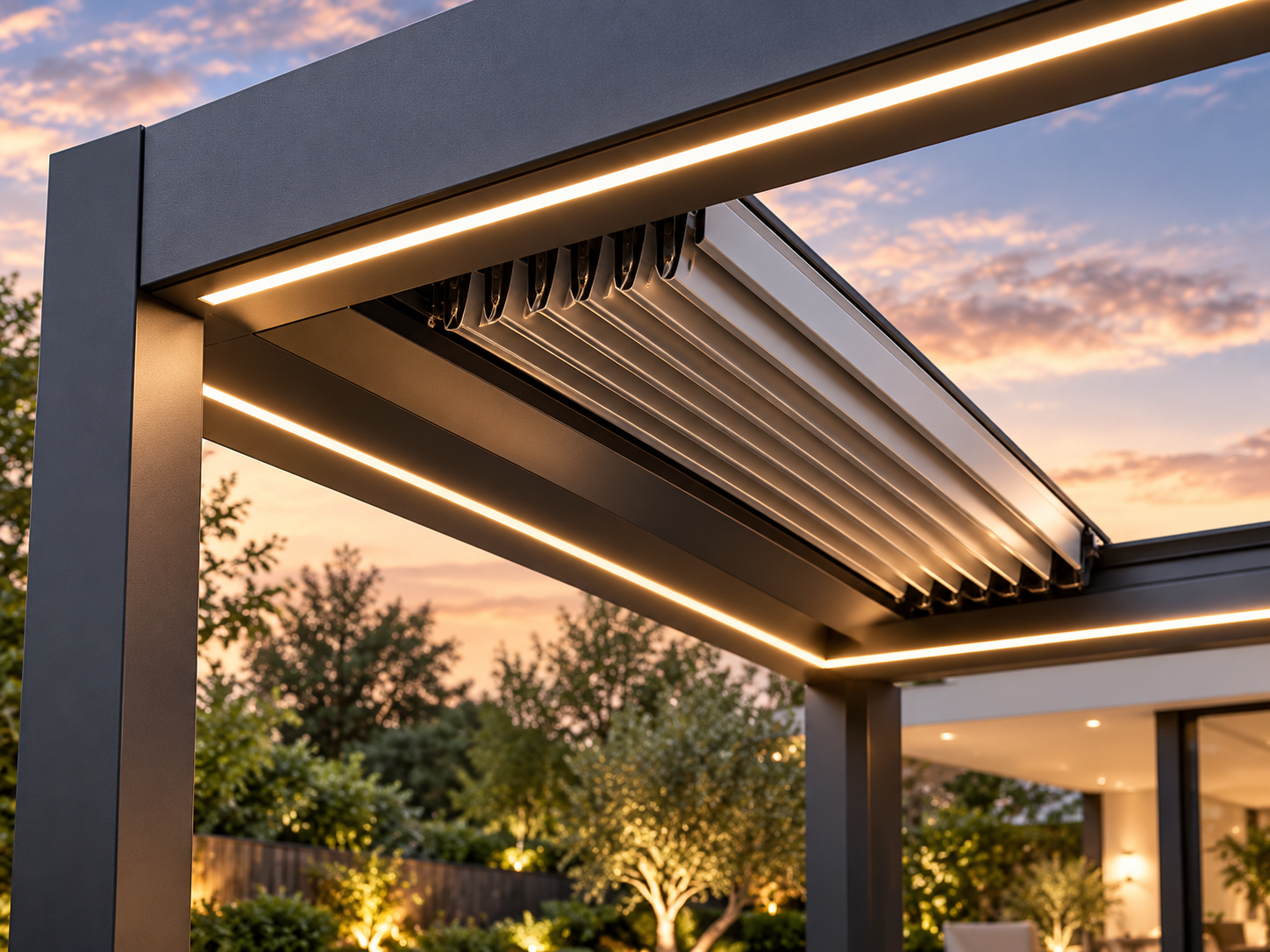

Retracted
Move the blades back to create the maximum available open-sky area. When fully retracted, the stacked louvres occupy approximately 30% of the roof depth at one end.
Weather sensing pathway
A wind / rain sensor is available in the documented accessory package. Exact automation logic is confirmed with the current controller before order.
Current commercial pathway
Standalone. Wall-mounted. Roof-only.
APERTA is offered in all three configurations. Seven nominal standard sizes are the preferred customer-facing starting points, with made-to-measure dimensions available where required and subject to final technical review.
Project information
What we need before quotation.
- Start with one of the seven promoted standard sizes; made-to-measure dimensions can also be reviewed
- Confirm whether the project is standalone / freestanding, wall-mounted or roof-only / fitted to a suitable existing structure
- Confirm the site location, exposure and intended use
- For standalone projects, confirm the available slab / footing area, finished height and required post locations
- For wall-mounted projects, provide the wall / building interface, front-support condition and any available structural information
- For roof-only projects, provide details of the existing supporting frame so suitability, fixing zones and load transfer can be reviewed
- Confirm the electrical supply route for the 220 V motor, receiver and LED lighting
- Confirm drainage discharge from the integrated gutter / post system
- Choose Black, White or a mixed Black / White standard combination, for example a Black frame with White louvres; FlaxPod Matt can be reviewed as a project colour
- Confirm whether compatible track-guided screens or weather sensing are required
- Provide unloading / assembly access and any known local engineering or approval requirements
CADARN colour direction
Black, White or a standard mixed-colour combination.
Black and White are the standard CADARN colour directions for APERTA, and they can be mixed within the same system — for example a Black frame with White louvres. FlaxPod Matt can be reviewed as a project colour at additional cost. Other powder-coat colours are not presented as standard public options.
Current add-on pathways
Useful options without over-claiming the platform.
Warm-white perimeter LED
Included in the documented configuration and coordinated with the motorised roof electrical pathway.
Track-guided screens
Matching outdoor screens can be reviewed against the selected APERTA size. Manual and motorised screen pathways exist in the documented accessory package.
Wind / rain sensor
Available as an accessory. Final operating behaviour is confirmed with the selected controller rather than assumed from historical smart-control wording.
RGB lighting + smart control
Optional RGB lighting and app / Tuya control are confirmed available, with final electrical integration selected at quotation.
Choose the CADARN roof by behaviour
Rotate, retract or stay permanently covered.
Each CADARN pathway solves a different outdoor-roof brief.
01CADARN LouvreAdjustable aluminium blades remain across the roof and rotate open / angled / closed.
Explore pathway
Explore pathway
02CADARN APERTAMotorised aluminium blades physically retract to create a substantially open roof.
Explore pathway
Explore pathway
03CADARN Fixed RoofPermanent polycarbonate overhead cover where the roof does not need to move.
Explore pathway
Explore pathway
04ARKENMade-to-measure architectural pathway for bespoke sizes, larger spans and more complex retracting / rotating projects.
Explore pathway
Explore pathway
Direct answers
CADARN APERTA FAQ.
What is CADARN APERTA?
CADARN APERTA is a motorised retractable aluminium roof system available in standalone / freestanding, wall-mounted and roof-only configurations. Its aluminium blades physically retract along the roof structure to create a substantially open-sky condition rather than simply remaining in place and rotating.
Is APERTA made to measure?
Yes. Apollo leads with seven simple nominal standard sizes because they make planning and quotation easier, while made-to-measure dimensions remain available for suitable projects. Final dimensions and support interfaces are confirmed for the selected configuration before order.
Does the roof rotate as well as retract?
The confirmed public function is roof retraction. Apollo is not publishing a rotate-and-retract claim for APERTA unless the selected operating mechanism is specifically verified.
Is APERTA motorised?
Yes. The documented system configuration includes a 220 V motor, receiver and remote control.
05Is lighting included?Yes. Warm-white perimeter LED lighting is included in the documented system configuration. Final electrical connection is a local project responsibility unless specifically included.
06Are smart controls available?Yes. App / Tuya control is available as an optional system configuration, with controller compatibility confirmed at quotation.
07Can weather sensing be added?A wind / rain sensor is available in the documented accessory package. Exact sensor logic and safe operating behaviour are confirmed with the final control package before any automated-response claim is made.
08Is it waterproof?APERTA is an outdoor roof system, not an enclosed waterproof room. When extended and closed, the roof is intended to manage rainfall through its roof and gutter system, while wind-driven rain and site conditions can still affect the space beneath.
09Can screens be added?Matching track-guided screens can be reviewed for compatible APERTA configurations. Screen dimensions, operating method and side conditions are confirmed against the selected system size.
10Can APERTA attach to a building?Yes. Wall-mounted installation is one of the three confirmed APERTA configurations. The exact wall connection, support arrangement and local structural design are project-specific.
11Is APERTA available freestanding?Yes. Standalone / freestanding is a confirmed APERTA configuration alongside wall-mounted and roof-only. Final post count and support arrangement depend on the selected size and project condition.
12How much of the roof remains stacked when fully retracted?The retractable louvre stack occupies approximately 30% of the roof depth when fully retracted. This leaves the majority of the roof area open to the sky while keeping the blade stack contained at one end.
13Can the frame and louvres be different colours?Yes. Standard Black and White finishes can be mixed, for example a Black frame with White louvres. Final colour allocation is confirmed in the order schedule.
14What technical ratings are published?The aluminium alloy is 6063-T5. Wind/load test information is available from the supplier, but project-specific values and reports must be reviewed before any wind, snow or IP performance rating is stated.
15What warranty applies?Apollo offers a 10-year structural manufacturing warranty and a 10-year powder-coating warranty for eligible APERTA orders, under Apollo's written warranty terms. Motors and electrical components have a separate 2-year warranty. Full Apollo customer warranty terms and exclusions must be included with the quotation.
16Is APERTA supply only?Yes. Apollo supplies the configured system package. Foundations, assembly, electrical connection, drainage discharge, local engineering, approvals and site-specific compliance remain project responsibilities unless expressly included in a quotation.
